Wide awake

-decoding broad complex tachycardias-

Patient presentation

  • 29 year old female

  • history of slow pathway ablation for typical AVNRT

  • Recurrent palpitations

  • reported wide complex tachycardia by ambulance (not documented)

Baseline ECG

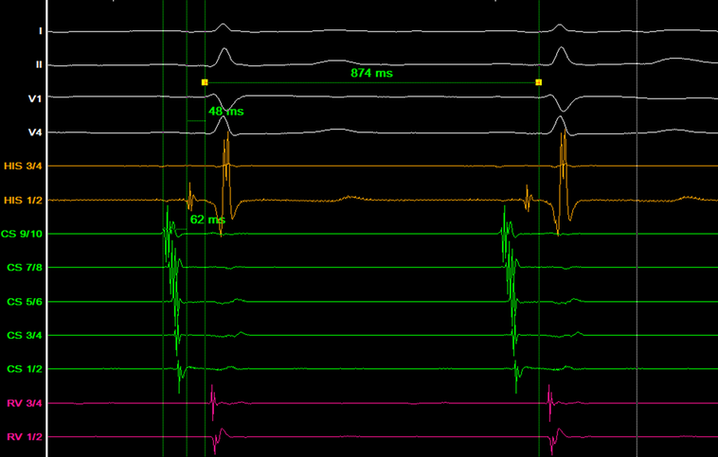

Baseline ECG/EGM

  • AH: 62

  • HV: 48

  • CL: 874


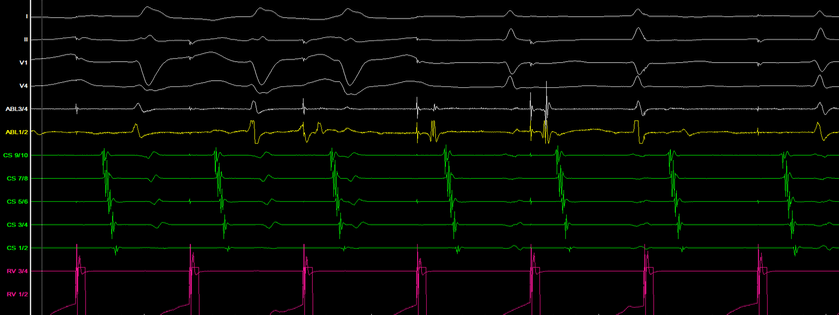

Retrograde incremental pacing

  • Non decremental VA conduction

  • Midline activation

  • 2:1 block


Antegrade incremental pacing

  • Broad complex tachycardia induced


12 lead ECG - tachycardia


Differential diagnosis

  • SVT with aberrancy

  • Antidromic AVRT

  • Ventricular tachycardia

Tachycardia characteristics

  • Long VA - 92ms


  • Tachycardia terminate with a V
    VT unlikely diagnosis


Diagnostic maneouvres in tachycardia

  • HIS synchronous VPB showing atrial advancment


  • Ventricular entrainment
    -entrains the atrium on <1 fully captured beats
    VAV response


  • Ventricular entrainment
    -PPI-TCL 404-314= 80ms
    -Stim A - VA 150-80 = 70ms


  • Atrial entrainment
    -pseudo AVVA response
    -same QRS morphology
    -VT excluded


  • All findings consistent with AVRT


Antidromic or orthodromic

  • HV 0ms during tachycardia (excludes aberrancy and consistent with antidromic AVRT)


Antidromic AVRT

  • HV interval 0ms during tachycardia

  • AVRT only tachycardia not ruled out

  • LBBB morphology

  • Retrograde conduction non-decremental (fixed VA)

  • Decremental antegrade pathway. AH prolongation seen with HV shortening with incremental atrial pacing

  • Pseudo AVVA interval with atrial entrainment pacing occurs due to antegrade decremental properties

  • However, all pacing maneouvres also showed a likely retrograde accessory pathway too.
    -number of beats to entrain <1, +ve zipes

  • Antidromic and orthodromic AVRT?


  • To prove antridromic limb is part of circuit - assess with a lateral RA extra

Lateral RA extra

  • Advances next V without effecting immediate septal atrial activation


Mahaim Fibers

  • Atriofasicular pathway (RA connects to RBB fibers rather than RV)

  • Slow antegrade conduction via atriofasicular fibre with retrograde conduction via HIS bundle/AV node

  • Typically along the lateral tricuspid annulus

  • May be composed of AV node like tissue (decremental properties, adenosine sensitive)

  • Has a degree of automaticity & can spontaneously trigger AVRT

  • Minimal pre-excitation on ECG – often normal PR interval

  • LBBB appearance during AVRT or pre-excitation

  • Delivering an early A from the lateral wall advances or delays the ventricular signal, but the septal atrial electrogram is not advanced on the APB beat.


Mapping atriofasicular fibers


  • M potential during atrial pace

  • M potential during tachycardia


  • Morphology


  • Bump map with ablator


  • 3D map - RAO


  • 3D map - LAO


Post ablation testing

  • No evidence of pre-excitation

  • Decremental AV nodal properties shown

  • No inducible tachycardia


  • Confirmation that the tachycardia was antidromic AVRT using mahaim pathway is the antegrade limb and the AV node as the retrograde limb.
