Tach me if you can
-mistaken identity in SVT-
Patient presentation
-
64 year old female
-
episodic palpitations for last few years
-
previous admissions for incressant, non sustained SVT
-
stop/start bursts suggestive of ATc
-
Documented tachycardiast
Differential diagnosis
-
AVNRT (atypical)
-
AVRT
-
Junctional tachycardia
-
Atrial tachycardia
P wave morphology
Tachycardia onset
Tachycardia offset

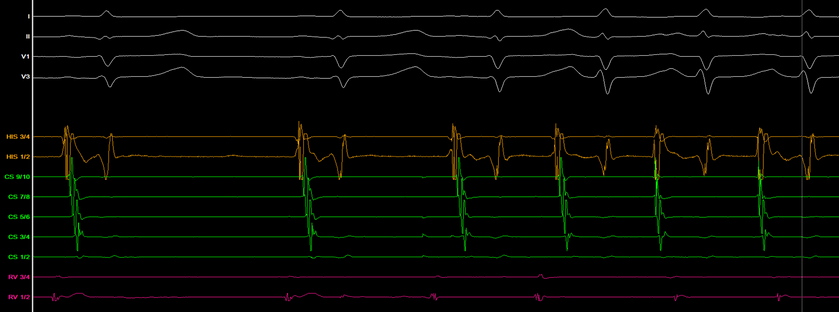

Baseline ECG/EGM

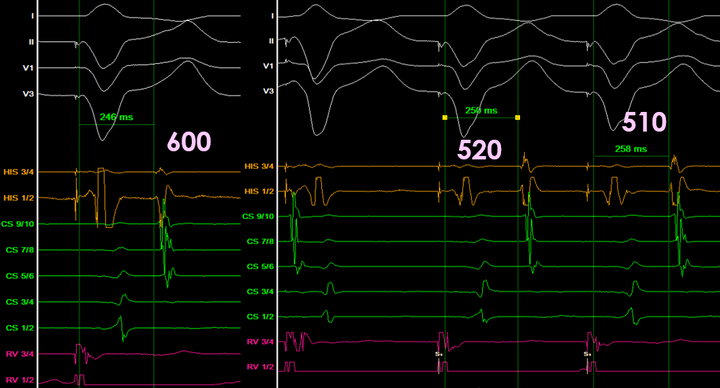

Retrograde pacing
-
Decremental, midline VA conduction
Tachycardia - onsets
-
initiated by atrial ectopic
-
initiated by ventricular ectopic
?2 for 1 phenomenon
-
junctional verse 2:1
-
same phenomenon inducing tachycardia
Tachycardia termination
-
terminating with V consistently
Tachycardia characteristics
-
Long RP tachycardia with midline activation
-
TCL 450ms
-
VA interval 184ms
Atrial pacing
-
Unable to perform any diagnostic baseline manoeuvres without inducing SVT
Tachycardia termination with early APB
-
Does not help differentiate AVNRT from ATc
Early APB showing linked VAs
-
demonstrates that VA conduction is involved in the circuit, consistent with AVNRT
Post slow pathway ablation
-
VA dissociation. No further inducible tachycardia
References
-
Kistler et al., (2005). Focal atrial tachycardia from the ostium of the coronary sinus. American college of Cardiology 45(9), 1488-1493
-
Kistler, P. et al., (2021). P-Wave Morphology in Focal Atrial Tachycardia: An Updated Algorithm to Predict Site of Origin. Clinical Electrophysiology, 7 (12), 1547-1556
-
Mandharam, V.R. & Lokhandwala, Y.Y. (2022). Last entrainment sequence: the last work in perinodal atrial tachycardia diagnosis? Clinical electrophysiology, 8 (10), 1301-1303
-
Veenhuyzen, G.D. & Quinn, F.R (2008). Principles of Entrainment: Diagnostic Utility for Supraventricular Tachycardia. Indian pacing and electrophysiology journal. 1;8 (1), 51-65
