AF diagnostics on devices
Useful information from a device in regard to AF diagnostics include
•AF percentage burden
•Number of AF episodes
•Longest episode of AF
•Occurrence of AF over time
•Ventricular histogram during AF
Abbott

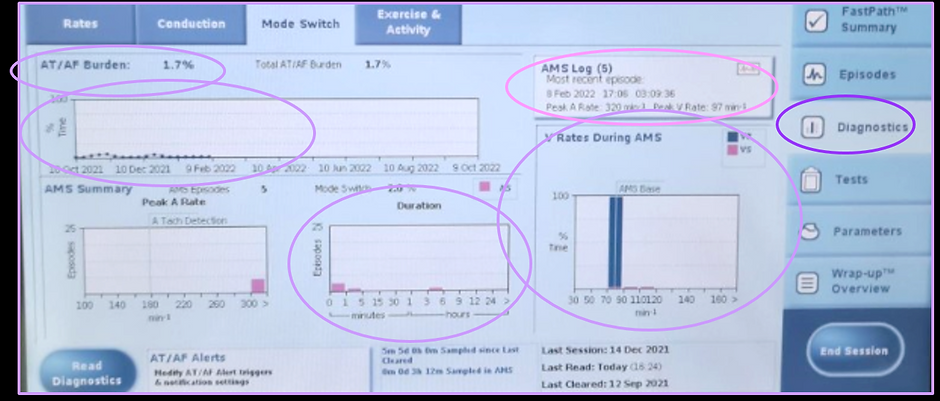

Under the "mode switch" tab within the diagnostics section, there is plenty of valuable information to do with AF, including the current buren percentage, the occurrence of the AF over time, longest episodes and ventricular rates during AF.

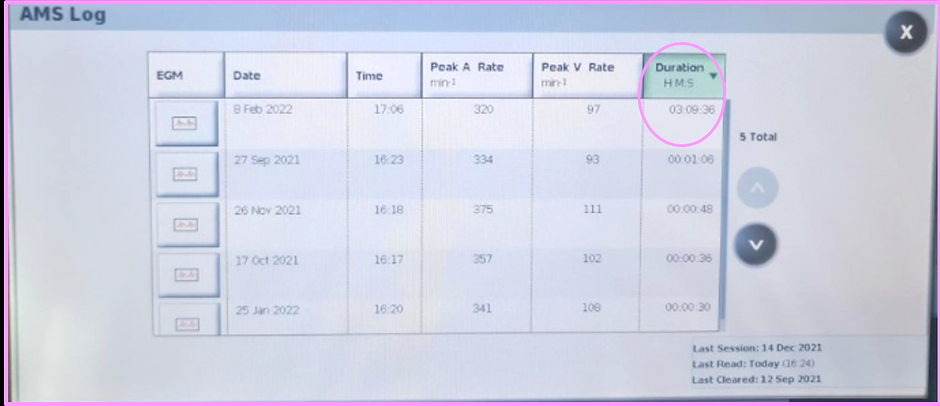

Under the "AMS log" EGMs can be viewed by duration.
Biotronik
Every Biotronik model has slightly variable information in terms of the AF data. Older models tend to demonstrate limited information.
​
In this example, the most relevant data is under atrial burden in Diagnostics and EGMs can be viewed under recordings.
Boston Scientific

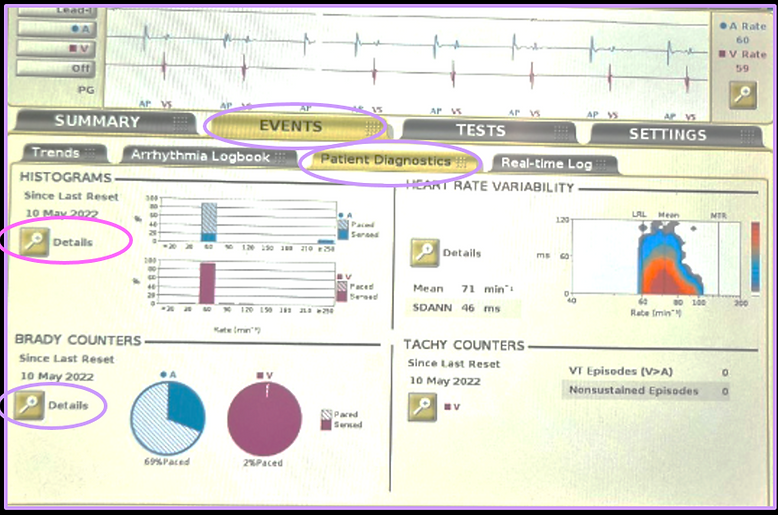

Info on AF burden and longest episode can be found by selecting details under the brady counters.
​

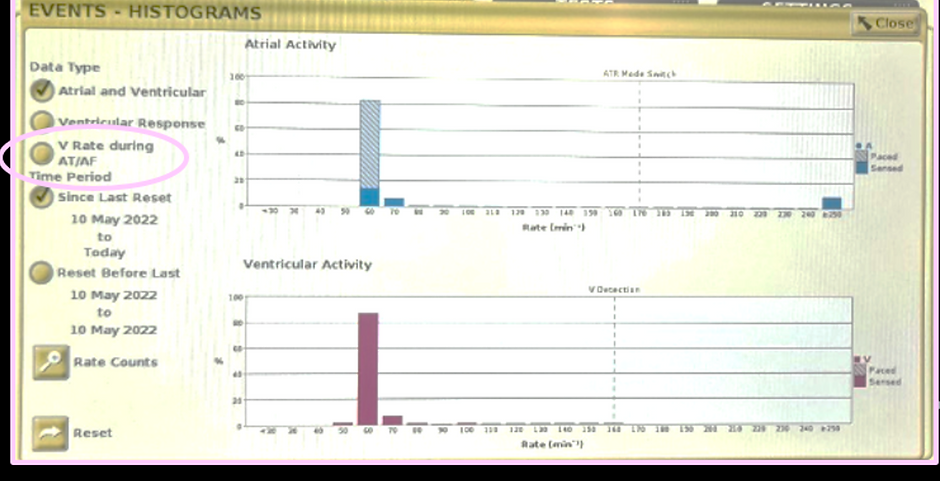

Ventricular rates during AF can be found by selecting details under histograms.
Medtronic
Depending on the platform, Medtronic AF diagnostics may be found in different areas on the device.

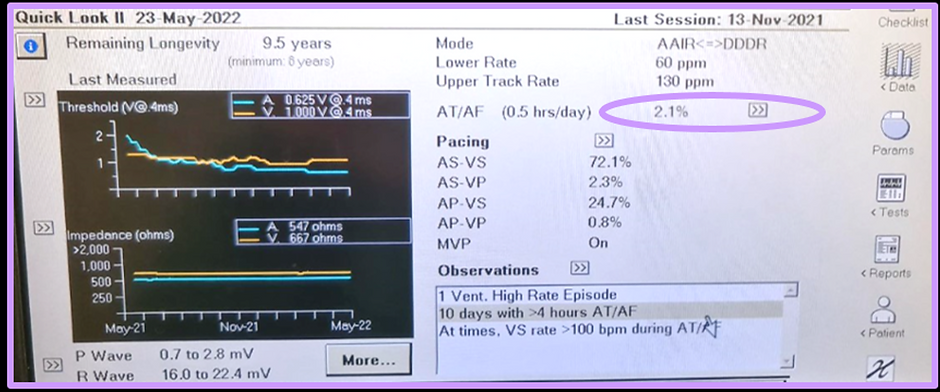

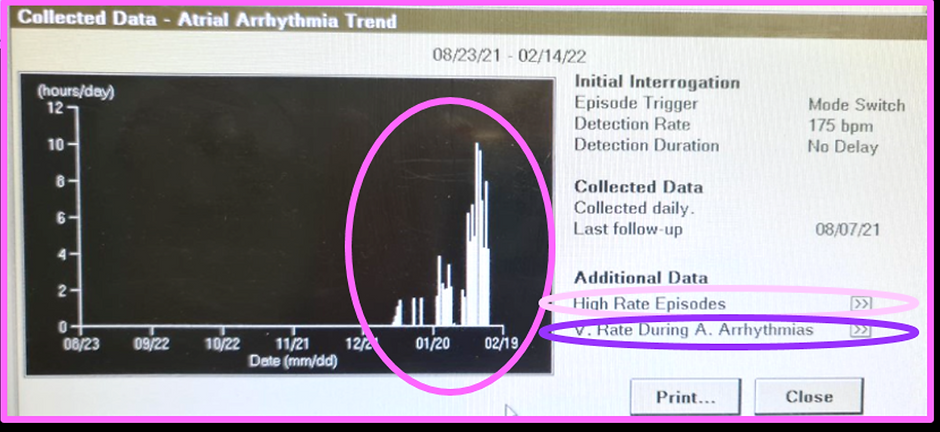

Old platform

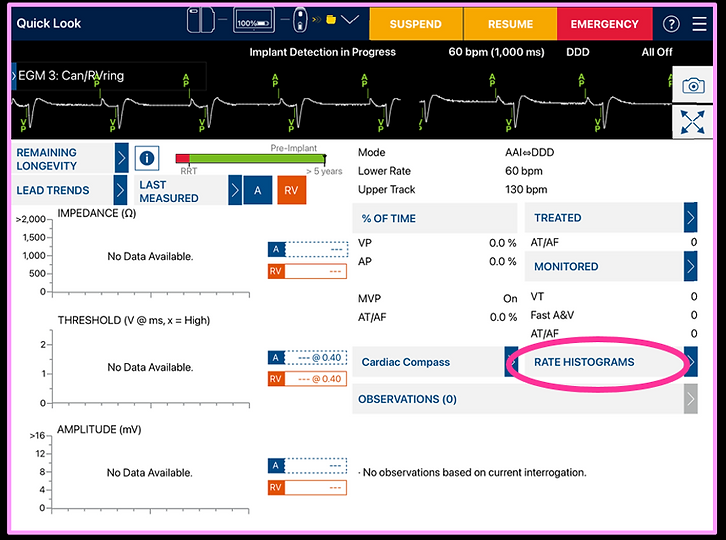

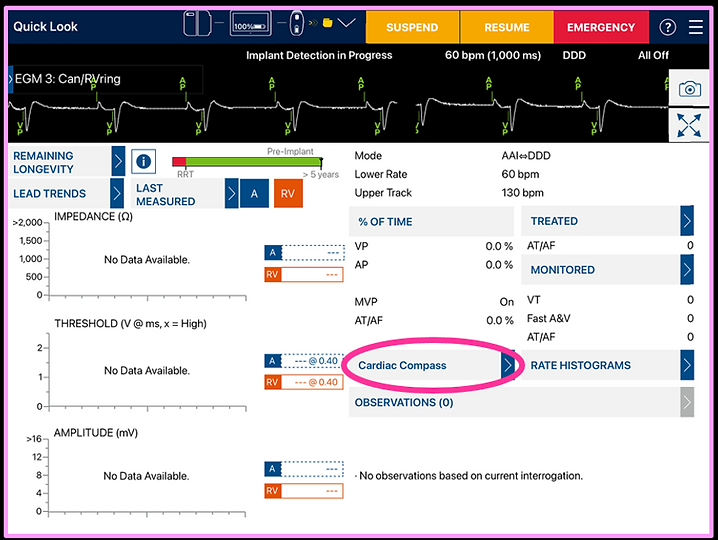

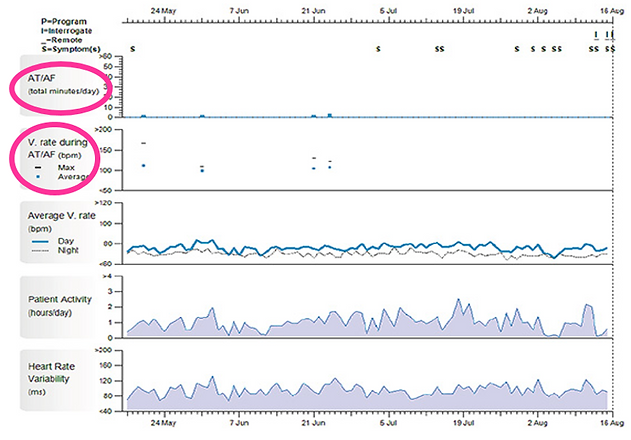

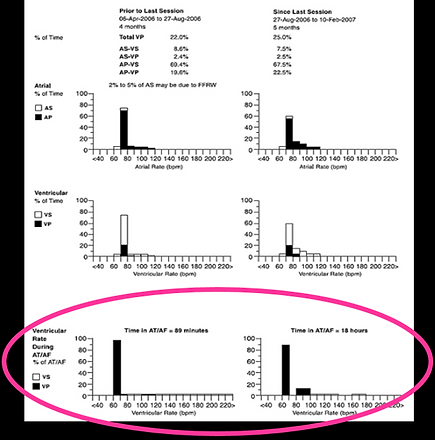

New platform

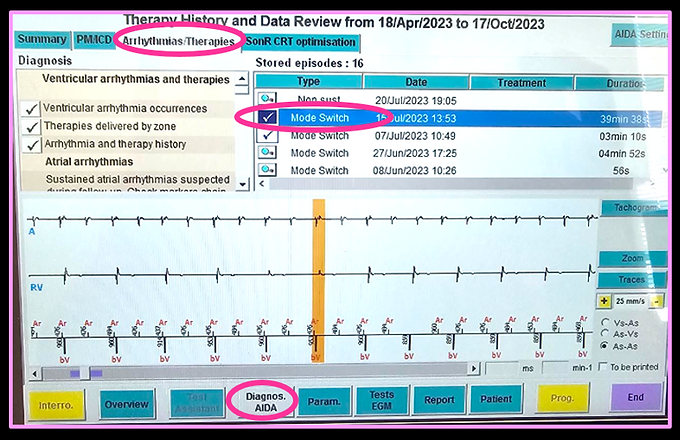

Microport
depending on the model, there us a lot of variability on what AF diagnostics can be retrieved from the device
