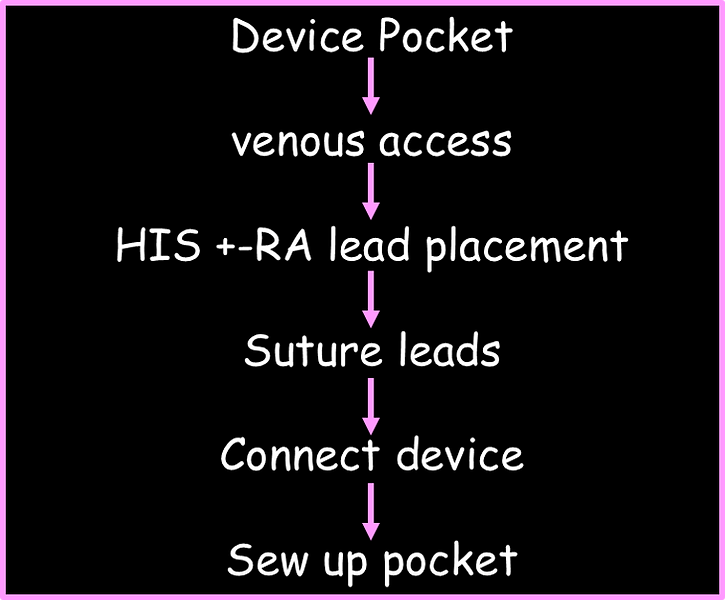

HIS lead implant
The pacing lead is implanted at the area of the bundle of HIS.

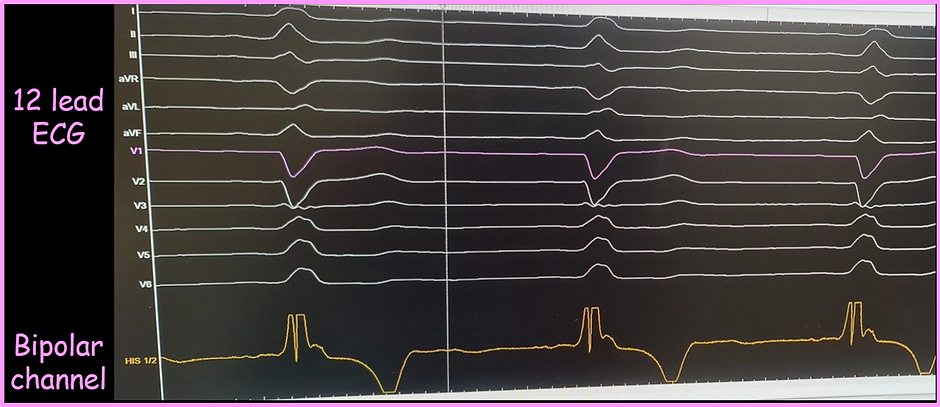

The EGM should have a clear HIS signal followed by an RV signal ~40-55ms after the HIS signal
Pacing at the HIS region can result in 3 possible outcomes
•Selective/pure HIS capture
•Non selective HIS capture (HIS and RV both captured)
•RV only capture (no HIS capture- should move lead)

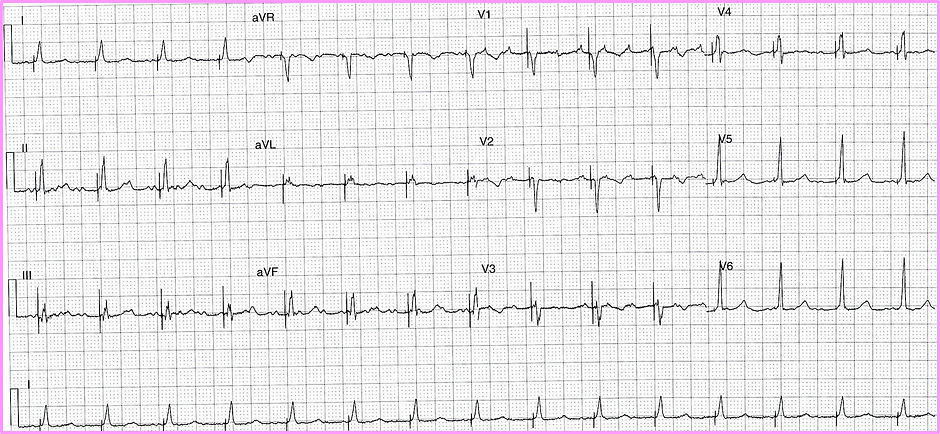

Location of capture can be determined by the 12 lead ECG
HIS lead implants: About
HIS device programming considerations
RV autocapture turned OFF
RV pulse width output changed to 1ms
HIS lead implants: About
Limitations/Complications
Can have sudden high thresholds
Can have very low R wave amplitude (sensing issues)
Can potentially develop distal conduction block resulting in sustained pauses
​
HIS lead implants: About

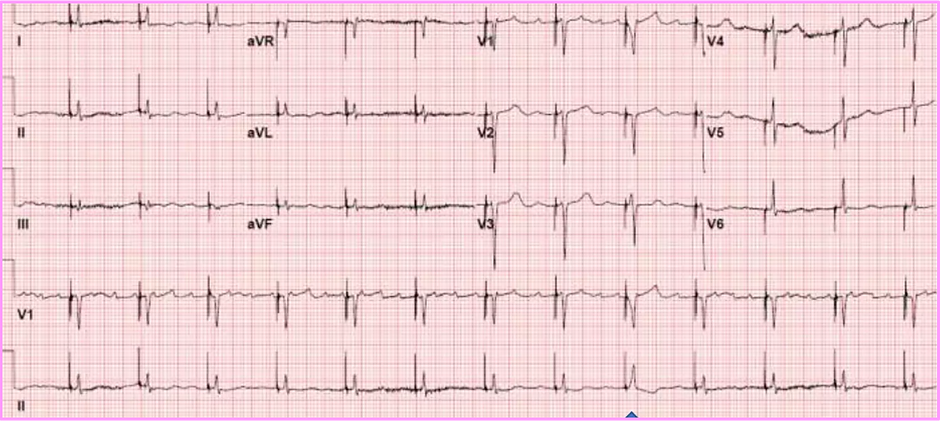

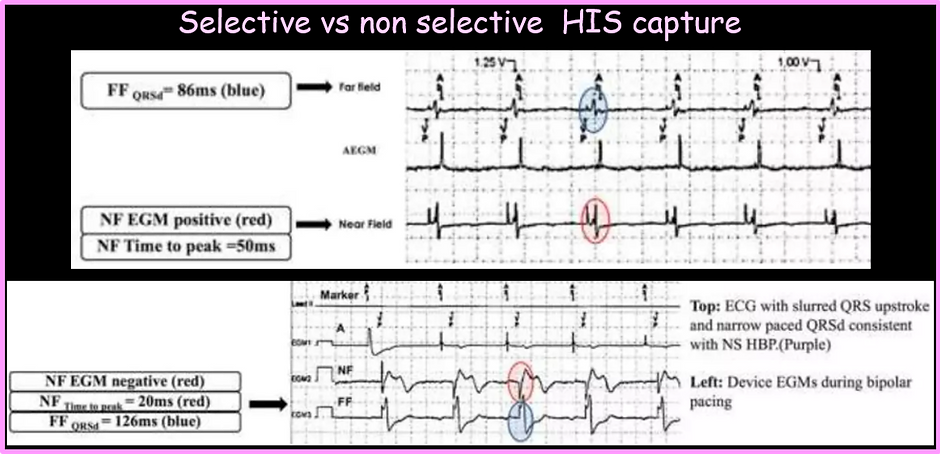

Selective/pure HIS capture
HIS lead implants: About
HIS lead implants: About

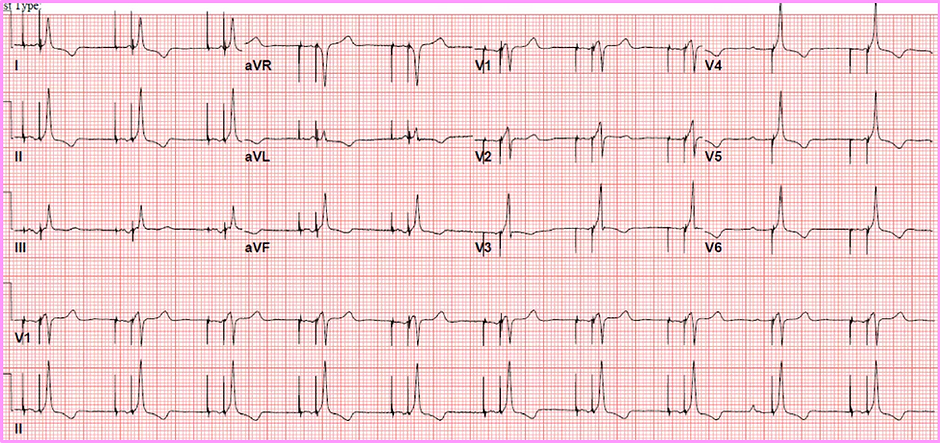

Non selective HIS capture
HIS lead implants: About

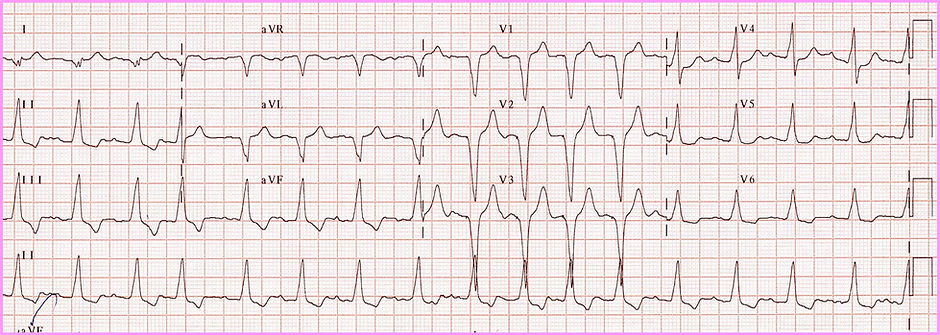

RV myocardium capture only
HIS lead implants: About

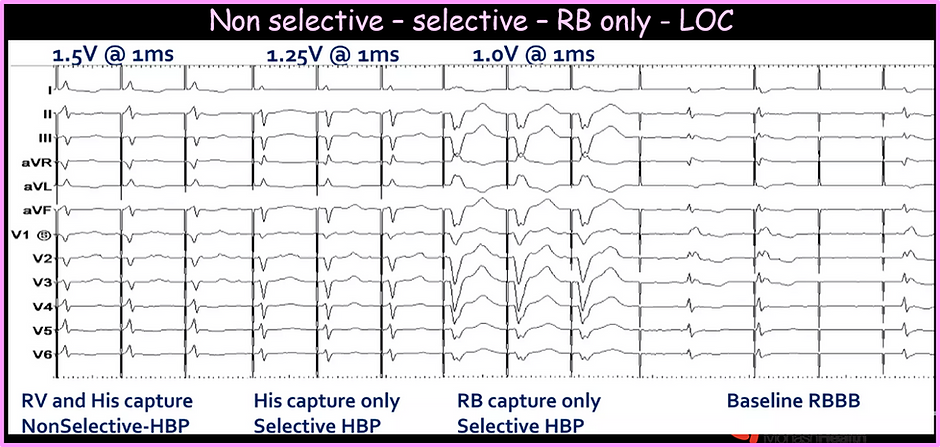

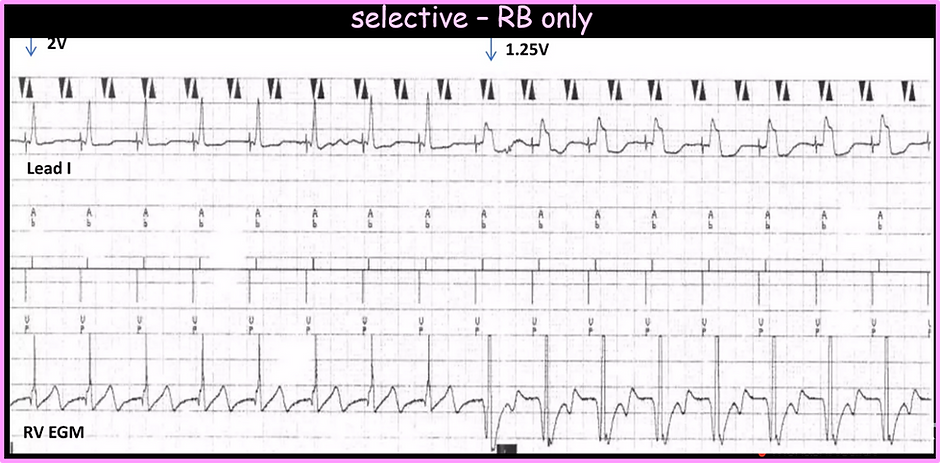

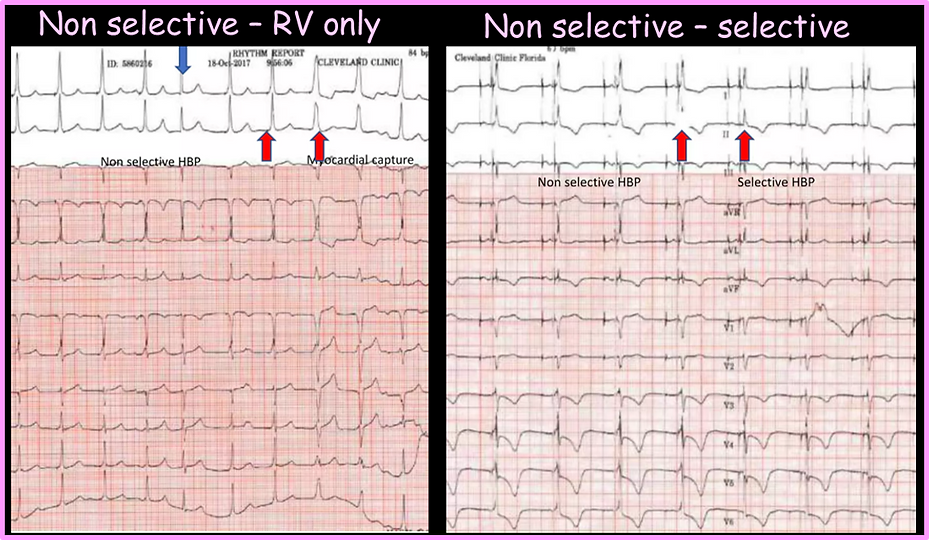

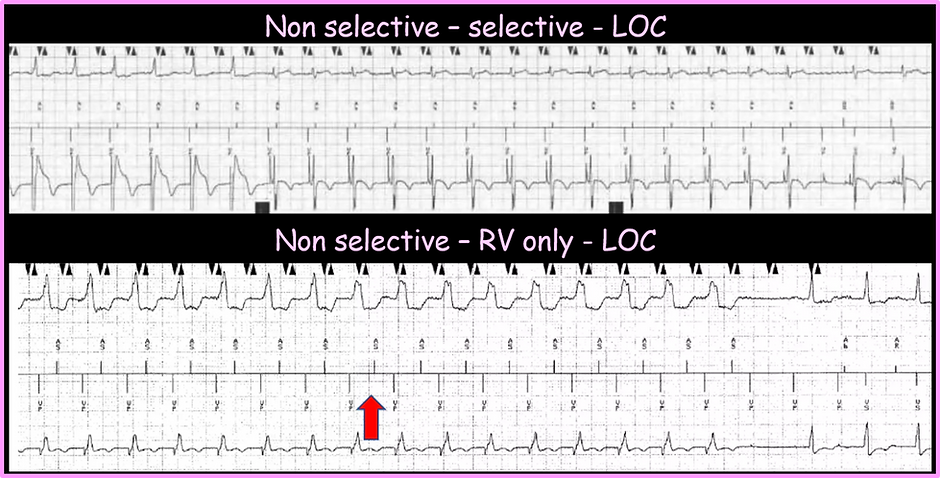

Change in capture during threshold testing
